The recorder is the most critical purchasing decision in a CCTV system. Cameras capture footage, but the recorder determines image quality, storage capacity, remote access and whether your system can grow over time. In Pakistan, two recorder types dominate the market: the DVR for analog camera systems and the NVR for IP camera systems. Before you compare cctv camera price in pakistan or commit to any camera model, you need to know which recorder type your cameras require. This guide covers both fully so you can make the right choice for your property.

What Is a DVR and How Does It Work?

A DVR (Digital Video Recorder) receives analog video signals from cameras, converts them to digital format, compresses the footage and saves it to an internal hard drive. Modern Hikvision DVRs support HD video over coaxial cable at resolutions up to 5MP, making them significantly more capable than the older CVBS-standard recorders still found in budget installations across Pakistan.

DVR Connection to Analog Cameras via Coaxial Cable

Analog cameras connect to a DVR using coaxial cable with BNC connectors. Each camera requires two cable runs: coaxial for video and a separate wire for power from a centralised power supply unit. A 4-camera DVR installation involves eight cable terminations at the recorder end. Coaxial cable performs reliably at distances up to 300 metres for standard HD analog signals, making it suitable for large properties where cameras are positioned far from the recorder room.

DVR Channel Count Options in Pakistan

DVRs are available in 4-channel, 8-channel, 16-channel and 32-channel configurations. Channel count is fixed in the hardware and cannot be upgraded after purchase. A 4-channel DVR suits standard home installations. An 8-channel DVR covers medium homes and small offices. A 16-channel DVR handles larger commercial properties. Buying one channel tier above your immediate need is standard practice since a 4-camera home frequently becomes a 6-camera home within two to three years.

DVR Storage and Hard Drive Specifications

DVRs use a 3.5-inch SATA hard drive for storage. Most models support one internal drive, with higher-end units supporting two. Surveillance-grade hard drives built for 24/7 continuous write operations, specifically Seagate SkyHawk and Western Digital Purple, are strongly recommended over standard desktop drives, which degrade significantly faster under continuous recording workloads.

What Is an NVR and How Does It Work?

An NVR (Network Video Recorder) receives video that has already been digitally encoded by the IP cameras themselves. The NVR does not process the signal. It receives compressed footage over a network connection, stores it on an internal hard drive and provides remote access. Because the camera handles its own encoding, NVR systems support higher resolutions and more advanced features than DVR systems. For current nvr price in pakistan across channel counts and PoE configurations, the IP cameras range gives full 2026 pricing.

NVR Connection to IP Cameras via Cat6 Cable

IP cameras connect to an NVR using Cat6 Ethernet cable with RJ45 connectors. A single Cat6 cable carries both the video data and, in PoE systems, the camera power supply. A 4-camera PoE NVR installation involves only four cable runs compared to eight for an equivalent DVR installation. Cat6 cable has a maximum reliable run length of 100 metres, which covers the majority of Pakistani residential and small commercial properties.

PoE NVR: Powering Cameras Over the Network Cable

A PoE NVR has a built-in switch that delivers electrical power to cameras through the same Cat6 cable carrying video data. This eliminates separate power supply units at each camera position or a centralised PSU at the recorder. PoE NVRs are now the standard for new IP camera deployments in Pakistan and simplify installation considerably compared to DVR cabling requirements.

NVR Channel Count and PoE Budget Explained

NVRs are available in 4, 8, 16 and 32-channel configurations with PoE ports matching the channel count. The total PoE budget on a typical 4-channel NVR is 40 to 60 watts, comfortably powering four standard cameras drawing 6 to 12 watts each. When specifying cameras with ColorVu white light illuminators, which draw higher power, confirm the total camera draw does not exceed the NVR’s PoE budget before finalising the system.

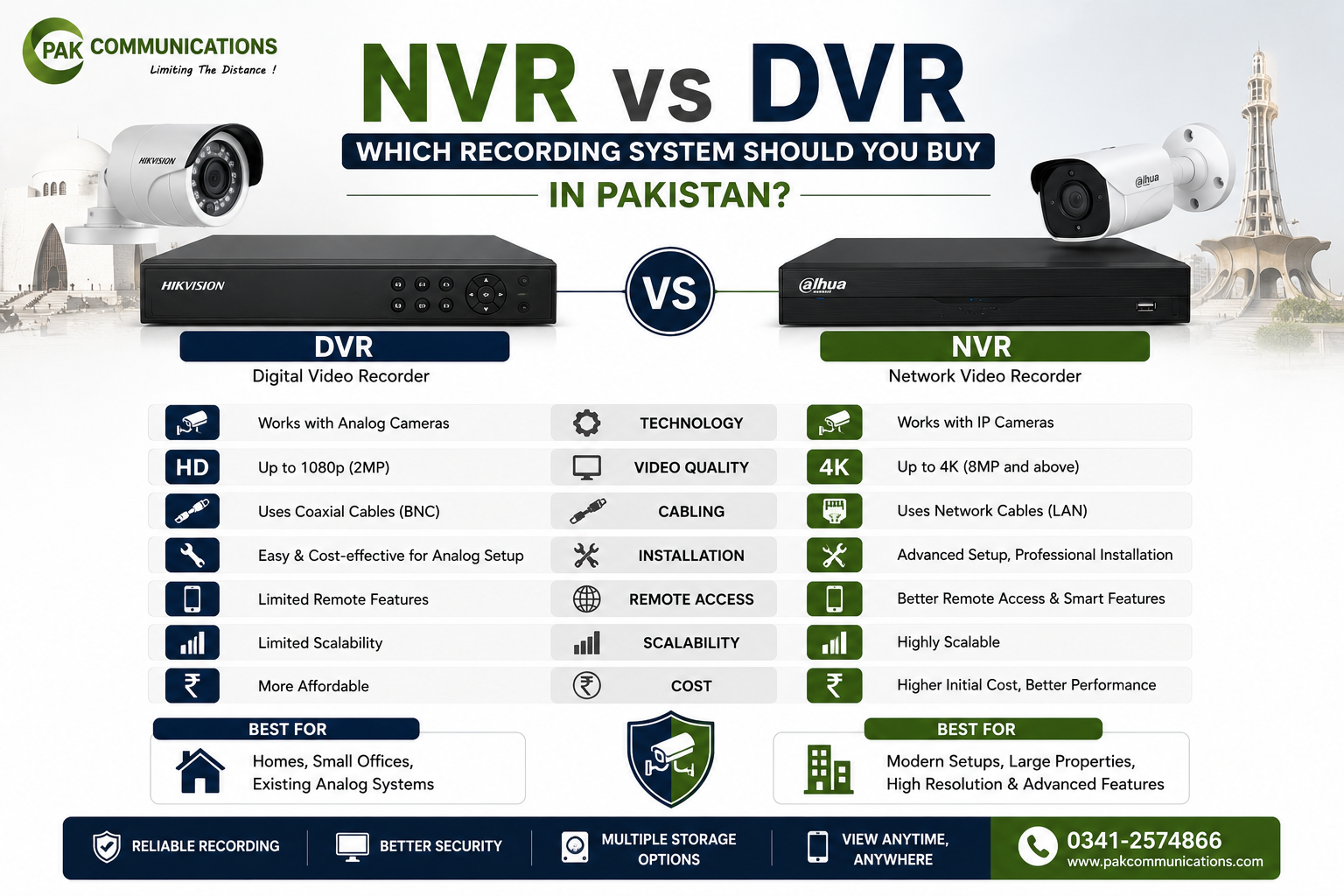

NVR vs DVR: Complete Comparison Table

Image Quality Comparison

Modern HD-TVI DVRs support 1080p to 5MP resolution over coaxial cable, covering the needs of most Pakistani home and small commercial installations. NVRs support IP cameras from 2MP to 8MP and above. At 2MP to 4MP, both systems deliver comparable image quality. For 5MP and above, or for cameras with AcuSense AI detection and active deterrent features, the NVR platform is required.

Installation Complexity Comparison

A 4-camera DVR installation requires eight cable runs: coaxial plus power for each camera. A 4-camera PoE NVR installation requires four cable runs, one per camera. For new installations with no existing cable, NVR is faster and cleaner to install. For properties with existing coaxial cable, a DVR retrofit avoids the full cost of replacing infrastructure.

Cost Comparison Pakistan 2026

Entry-level DVR systems cost less than equivalent NVR systems. The difference comes from both the recorder price and camera price, as analog cameras are generally lower in cost than IP cameras at the same resolution. At 4MP and above, the total system cost gap between DVR and NVR narrows significantly and the decision shifts to resolution requirement and cable infrastructure rather than price alone.

Remote Access Comparison

Both DVR and NVR systems from Hikvision support full remote access through Hik-Connect. Live viewing, motion alerts, playback and clip download are available on both system types from any location with a mobile or WiFi connection. There is no practical remote access advantage of one system type over the other for Pakistani residential and commercial users.

Expansion and Upgrade Comparison

Both recorder types are limited to their fixed channel count. On an NVR, individual IP cameras can be upgraded to higher resolution models or AI-feature models without changing the recorder, provided the new camera remains within the PoE budget. On a DVR, analog cameras can be upgraded in resolution up to the DVR’s maximum supported spec, but AI-based features require an NVR platform.

When to Choose DVR for Your Pakistani Property

Existing Coaxial Cable Infrastructure

If your property has coaxial cable from a previous CCTV installation, a DVR reuses that infrastructure entirely. Replacing functioning coaxial cable with Cat6 purely to adopt an NVR is an unnecessary cost. A modern Hikvision HD-TVI DVR delivers 1080p to 4MP over your existing cable, which meets the resolution requirements of most Pakistani residential and small commercial installations.

Budget-Priority Analog Installations

For installations where keeping total system cost to a minimum is the primary constraint, a DVR system with analog camera cctv is the more cost-effective path. The combination of a lower-priced recorder and lower-priced analog cameras at 2MP produces a fully functional installation at a meaningfully lower entry cost than an equivalent NVR and IP camera package. This makes DVR the appropriate choice for rental properties, budget home upgrades and small shops.

Small Home and Shop Installations

A 4-camera DVR covers the standard coverage requirement of a single-storey Pakistani home or a small retail shop. At this scale, the additional cost of an NVR provides no practical benefit. Footage resolution, remote access capability and storage options are functionally equivalent at 2MP, making the lower total cost of the DVR the deciding factor.

When to Choose NVR for Your Pakistani Property

New Build Properties with No Existing Coaxial

For properties under construction or full renovation where no cable infrastructure exists, running Cat6 costs the same as running coaxial cable. In this situation, choosing NVR and IP cameras delivers a more capable, more future-ready system at no additional installation cost. The single-cable PoE advantage is fully realised in new builds where cable routing decisions have not yet been made.

Higher Resolution Requirement Above 1080p

If any position requires 4MP or above for identification quality, NVR gives you a significantly wider selection of compatible cameras with features such as ColorVu, AcuSense AI detection and active deterrent lighting that are unavailable on analog platforms. For any requirement above standard 2MP coverage, the IP camera and NVR path offers more choice at competitive pricing.

Large Commercial and Factory Installations

For properties requiring 16 or more cameras, NVR and IP cameras offer a meaningful installation advantage. IP cameras can be deployed on network switches positioned throughout the property, with a single trunk cable connecting each switch cluster back to the NVR. This architecture eliminates the long individual coaxial cable runs that make large DVR installations expensive and difficult to maintain in Pakistani factory and warehouse environments.

DVR and NVR Price Comparison Pakistan 2026

Prices below cover the recorder unit only and exclude cameras, hard drives and installation.

4-Channel DVR vs NVR Price

A 4-channel Hikvision HD-TVI DVR in Pakistan ranges from PKR 8,000 to PKR 14,000. A 4-channel PoE NVR ranges from PKR 12,000 to PKR 20,000. The price gap at 4-channel level is approximately PKR 4,000 to PKR 6,000 in favour of the DVR recorder.

8-Channel DVR vs NVR Price

An 8-channel Hikvision DVR ranges from PKR 14,000 to PKR 22,000. An 8-channel PoE NVR ranges from PKR 20,000 to PKR 32,000. At 8-channel, the recorder price difference alone should not be the deciding factor. Total system cost including cameras should be compared across both options before committing.

16-Channel DVR vs NVR Price

A 16-channel Hikvision DVR ranges from PKR 25,000 to PKR 38,000. A 16-channel PoE NVR ranges from PKR 36,000 to PKR 55,000 depending on total PoE budget and resolution support. At 16-channel scale, the decision should rest primarily on resolution requirement and cable infrastructure rather than recorder price.

Hard Drive Requirements for DVR and NVR in Pakistan

How Much Storage 4 Cameras Need for 30 Days

Using H.265 compression at 2MP with continuous recording, 4 cameras require approximately 1TB for 30 days of footage. At 4MP continuous, that figure doubles to approximately 2TB. An 8-camera 2MP system requires approximately 2TB for the same period. Motion-only recording reduces consumption by two to three times, extending these estimates considerably for properties with limited motion activity.

H.265 Compression Reducing Storage Cost

H.265 (HEVC) compression is approximately 50 percent more efficient than H.264 at the same image quality. Switching from H.264 to H.265 in the recorder settings effectively doubles the number of recording days per hard drive without changing any hardware or reducing footage quality. All current Hikvision DVRs and NVRs support H.265. If your recorder is set to H.264 by default, enabling H.265 is the most cost-effective configuration improvement available at no additional cost.

Recommended Hard Drive Brands in Pakistan

Seagate SkyHawk and Western Digital Purple are the two surveillance-grade hard drive ranges recommended for CCTV recorders in Pakistan. Both are designed for 24/7 continuous write workloads and carry significantly higher annual write endurance ratings than standard desktop drives. Seagate Barracuda and WD Blue drives function in CCTV recorders but degrade faster under continuous recording conditions and are not recommended for installations targeting three or more years of reliable operation.

Frequently Asked Questions

Can I Use IP Cameras with a DVR in Pakistan?

No. A standard DVR accepts only analog signals over coaxial cable. IP cameras transmit a network-based video stream that a DVR cannot receive. If you plan to use IP cameras, you need an NVR. Some hybrid recorders handle both analog and IP channels, but these are purchased only for mixed system upgrades and are not a standard first-choice configuration.

Can I Use Analog Cameras with an NVR in Pakistan?

No. An NVR accepts only digital network video over Cat6 or Ethernet. Analog cameras must be used with a DVR. Analog-to-IP converter devices exist but add cost and complexity that makes selecting the correct recorder from the start the more practical approach.

Which Is Cheaper: DVR or NVR System in Pakistan?

A complete DVR system including recorder, cameras, hard drive and cable is generally 15 to 25 percent cheaper than an equivalent NVR system at the same resolution and channel count. The gap is more pronounced at 2MP and narrows at 4MP and above.

Can I Expand a 4-Channel DVR to 8 Channels Later?

No. Channel count is fixed in the recorder hardware and cannot be upgraded through firmware. Expanding beyond the current channel count requires replacing the recorder. Buying one channel tier above your immediate need at the time of initial purchase is the recommended approach.

Does Load Shedding Damage DVR or NVR Recorders?

Sudden power cuts do not typically cause hardware damage, but they can corrupt the recording file being written at the moment power fails. Repeated abrupt shutdowns also reduce hard drive lifespan over time. Both risks are eliminated by connecting the recorder to a UPS, which provides a clean shutdown during extended outages and prevents recording file corruption during sudden load shedding cuts.

Conclusion

DVR is the right choice when existing coaxial cable infrastructure is already in place, when budget is the primary constraint and when 2MP to 4MP resolution is sufficient for your coverage needs. NVR is the right choice for new cable installations, for any resolution requirement above 4MP and for large commercial properties where network-based deployment simplifies both installation and future expansion.

Both recorder types support full remote access, H.265 compression and surveillance-grade hard drive storage. The recorder type does not determine whether your system performs well. Camera specification, correct positioning and proper installation determine that. The recorder determines which cameras you can use and how far your system can grow.

For the full range of NVR packages, IP cameras and complete cctv camera system options available in Pakistan with 2026 pricing, you can compare all specifications across your channel count and budget requirement before making a final decision.
